    Machine Embroidery Hoops Buying Guide

    Untitled 3

    Embroidery Hoops Buying Guide - About Machine Embroidery Hoops

    We have two types of hoops available for single and multi-needle machines

    • The Snap Hoop Monster - For non-adhesive stabilizers
    • The Sticky Hoop - For adhesive stabilizers

    These differences are important because they are not interchangeable. Using an adhesive on the Snap Hoop Monster will prevent it from sliding smoothly across the machine bed. The Sticky Hoop should only be used when an adhesive is applied to the back of the frame. We have snap and sticky hoops for Baby Lock, Bernina, Brother, Husqvarna-Viking, Janome, Pfaff, and SWF machines.

    Snap Hoop Monster

    The Snap Hoop Monster is an easy-to-use magnetic embroidery frame designed for user-friendly fabric hooping and alignment. Its patented design simplifies multiple hoopings and ensures precise alignment for various fabrics, including terry cloth, bulky fleece, quilt sandwiches, and heavy fabrics. It is excellent for continuous and allover embroidery, allowing for adjustments. It is designed to reduce hand strain and prevent hoop burn. The frame enables stitching to the fabric's edge and is available in multiple sizes.

    Magnetic hoops securely hold your fabric and stabilizer together with a flat, firm grip. Because the fabric lies flat between the frames, it can be pulled, adjusted, and repositioned without causing fabric distortion.

    The Snap Hoop Monster Package Includes:

    • One metal base frame with machine attachment
    • One magnetic top frame
    • One magnetic safety shield
    • Four adhesive centering rulers
    • Target stickers for planning embroidery layout
    • Printed instructions

    Sticky Hoop

    The Sticky Hoop has a flat metal frame that streamlines trimming for applique and in-the-hoop projects. There are no embroidery rings to interfere with trimming. Materials can extend beyond the sewing field, in effect making the Sticky Hoop "Sideless". Use a pre-cut, tearaway adhesive stabilizer for the best results.

    The Sticky Hoop Package Includes:

    • Sticky Hoop frame
    • Five sheets of Peel 'n Stick tear-away adhesive stabilizer pre-cut for your hoop size
    • Four adhesive centering guides

    Selecting Embroidery Hoops

    Knowing the make and model of your machine is crucial. Our brand-specific shopping pages feature charts for popular machines and highlight any limitations, such as the need for upgrade kits or firmware updates.

    Hoop Sizing

    Some hoops are listed using millimeters (mm), and some are listed using inches (In.). Even for those accustomed to using inches, measurement is much easier and precise using millimeters when determining hoop size. This is because inches often convert to improper fractions.

    It is important to note there are three dimensions to consider:

    • The described dimensions - Industry standards allow dimensions to be rounded for inches and metric
    • The sewing field dimensions - your project's surface area
    • The inside dimensions of the hoop itself

    For the best results stabilizing your embroidery design, it's generally best to use the smallest hoop that fits. For instance, a 4" x 4" hoop is ideal for a 3" x 2" design, to ensure the fabric is held tightly. While a 5" x 7" hoop can be used, the 4" x 4" hoop offers better tension. There are scenarios where a larger hoop might be necessary, such as:

    • Incorporating multiple designs
    • Buttons and pockets that interfere with a smaller frame
    • Aligning a design that nearly fills the hoop

    Example

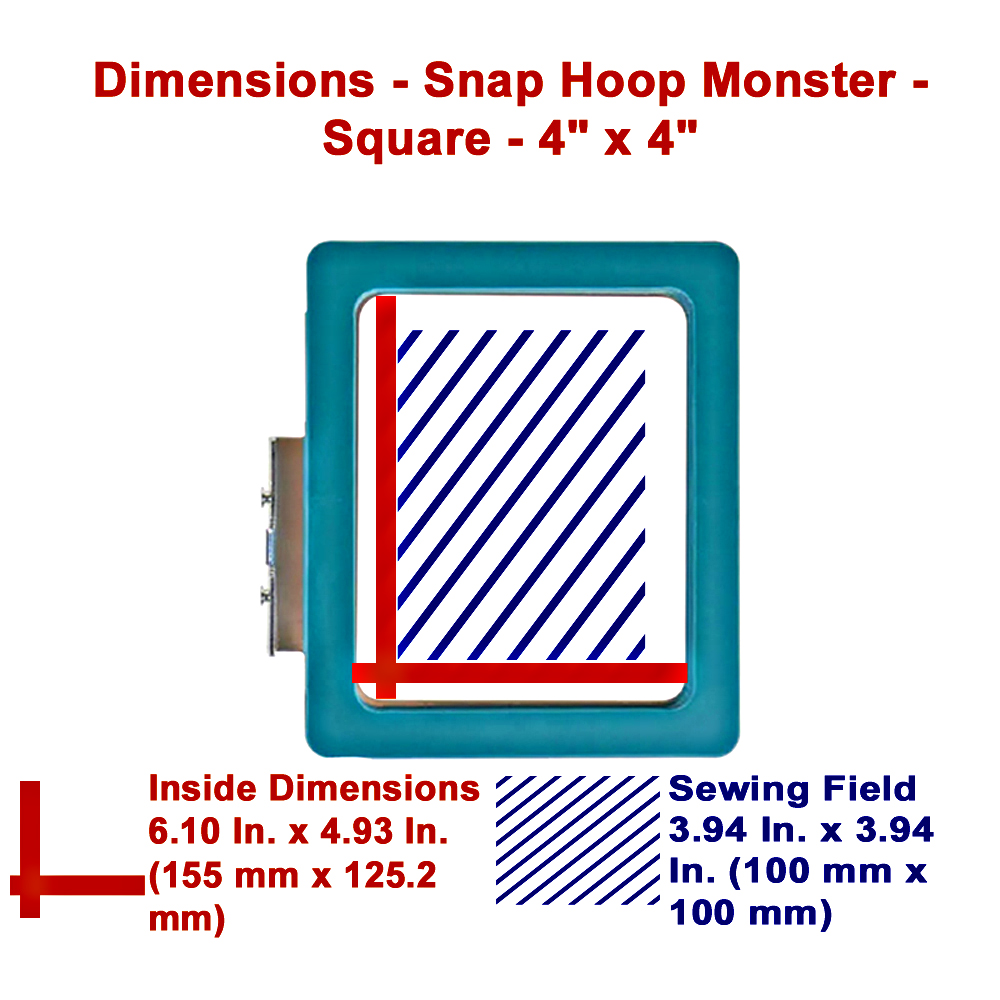

    The Snap Hoop Monster - Square - 4" x 4" - Magnetic Frame for Baby Lock is described as 4 inches by 4 inches, but its sewing field is actually 3.94 In. x 3.94 In. (100 mm x 100 mm). There is a third set of dimensions to consider - The inside dimensions of the hoop itself. The inside dimensions of the 4" x 4" hoop are larger than the sewing field area with an actual length of 6.10 In. x 4.93 In. (155 mm x 125.2 mm).

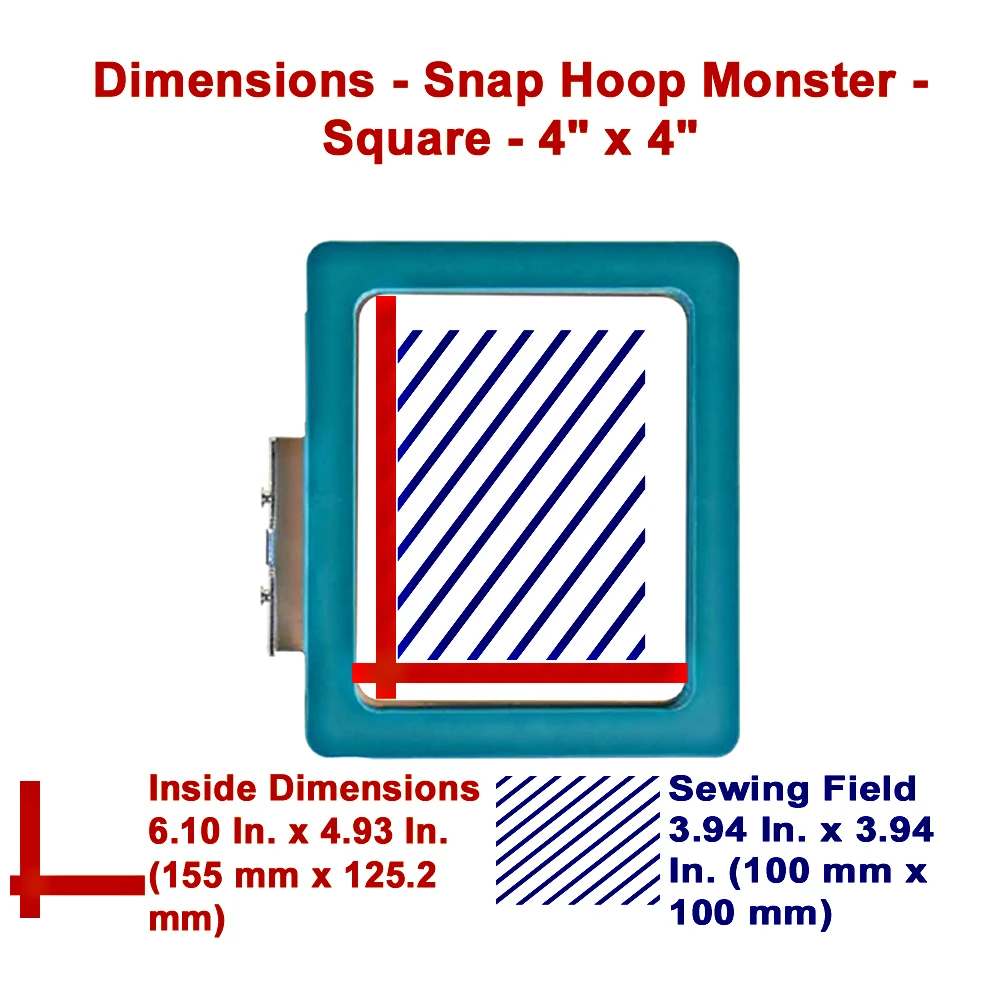

    Actual dimensions of a machine embroidery hoop.

    Snap Hoop Dimensions

    Single Needle (non-tubular) Hoops

    Multi Needle and Single Needle Tubular Hoops

    Baby Lock and Brother Hoop Dimensions

    SH00A13M 4"x 4" Basic Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: 3.94" x 3.94" or 100 mm x100 mm

    • Inside Width: 125.22 mm / 4.93 inches

    • Inside Length: 155 mm / 6.10 inches

    SH00A3M 4" x 4" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: 3.94" x 3.94" or 100 mm x100 mm

    • Inside Width: 125.22 mm / 4.93 inches

    • Inside Length: 155 mm / 6.10 inches

    SH00A1M 5" x 7" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: 5.12" x 7.09" or 130 mm x180 mm

    • Inside Width: 154.9 mm / 6.10 inches

    • Inside Length: 225 mm / 8.86 inches

    SH00A6M 5" x 7" Snap Hoop Monster with clamp down for Baby Lock and Brother

    • Sewing Field: 5.12" x 7.09" or 130 mm x 180 mm

    • Inside Width: 156.4 mm / 6.16 inches

    • Inside Length: 218 mm / 8.58 inches

    SH00A14M 6" x 6" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: 5.91" x 5.91" or 150 mm x 150 mm

    • Inside Width: 174.75 mm / 6.88 inches

    • Inside Length: 196 mm / 7.72 inches

    SH00A8M 6" x 10" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: 5.91" x 10" or 150 mm x 255 mm

    • Inside Width: 186.01 mm / 7.32 inches

    • Inside Length: 306 mm / 12.05 inches

    SH00A5M 7" x 12" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: 7.09" x 11.81" or 130 mm x300 mm

    • Inside Width: 200.08 mm / 7.88 inches

    • Inside Length: 350 mm / 13.78 inches

    SH00A2M 8" x 8" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: 7.87" x 7.87" or 200 mm x 200 mm

    • Inside Width: 224.94 mm / 8.86 inches

    • Inside Length: 255 mm / 10.04 inches

    SH00A7M 8" x 12" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: 7.87" x 11.81" or 200 mm x300 mm

    • Inside Width: 225.43 mm / 8.88 inches

    • Inside Length: 355 mm / 13.98 inches

    SH00A10M 9.5" x 9.5" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: same or 240 mm x 240 mm

    • Inside Width: 284 mm / 11.18 inches

    • Inside Length: 268 mm / 10.55 inches

    SH00A9M 9.5" x 14" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: 9.45 x 13.98" or 240 mm x355 mm

    • Inside Width: 292.58 mm / 10.61 inches

    • Inside Length: 437 mm / 17.20 inches

    SH00A12M 10 5/8" x 10 5/8" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: same or 272 mm x 272 mm

    • Inside Width: 292.69 mm / 11.52 inches

    • Inside Length: 333 mm / 13.11 inches

    SH00A11M 10 5/8" x 16" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: same or 272 mm x 408 mm

    • Inside Width: 304.75 mm / 12.00 inches

    • Inside Length: 473 mm / 18.62 inches

    Bernina Hoop Dimensions

    SH00C1M 145 mm x255 mm Snap Hoop Monster for Bernina

    • Inside Width: 161.92 mm / 6.375 inches

    • Inside Length: 277.81 mm / 10.3125 inches

    SH00C2M 150 mm x 400 mm Mega Snap Hoop Monster for Bernina - Arista

    • Inside Width: 169.7 mm / 6.68 inches

    • Inside Length: 430 mm / 16.93 inches

    SH00C3M 150 mm x 400 mm Mega Snap Hoop Monster for Bernina

    • Inside Width: 169.7 mm / 6.68 inches

    • Inside Length: 430 mm / 16.93 inches

    SH00C5M 210 mm x 400 mm - Maxi Snap Hoop Monster for Bernina

    • Inside Width: 233.4 mm / 9.19 inches

    • Inside Length: 425 mm / 16.73 inches

    SH00C4M 260 mm x 400 mm Jumbo Snap Hoop Monster for Bernina

    • Inside Width: 279.26 mm / 10.99 inches

    • Inside Length: 427 mm / 16.81 inches

    SH00C6M 265 mm x 165 mm Midi Snap Hoop Monster for Bernina

    • Inside Width: 190.22 mm / 7.49 inches

    • Inside Length: 295 mm / 11.61 inches

    Janome Hoop Dimensions

    SH00B1M 5" x 7" Snap Hoop Monster for Janome

    • Sewing Field: 5.12" x 7.09" or 130 mm x 180 mm

    • Inside Width: 154.9 mm / 6.10 inches

    • Inside Length: 225 mm / 8.86 inches

    SH00B9M 5.5" x 7.9" Snap Hoop Monster for Janome

    • Sewing Field: same or 140 mm x 200  mm

    • Inside Width: 170 mm / 6.69 inches

    • Inside Length: 245 mm / 9.65 inches

    SH00B2M 8" x 8" Snap Hoop Monster for Janome

    • Sewing Field: 7.87" x 7.87" or 200 mm x 200 mm

    • Inside Width: 224.94 mm / 8.86 inches

    • Inside Length: 255 mm / 10.04 inches

    SH00B7M 8" x 11" Snap Hoop Monster for Janome

    • Sewing Field: 7.87" x 11" or 200 mm x 280 mm

    • Inside Width: 225.43 mm / 8.88 inches

    • Inside Length: 355 mm / 13.98 inches

    SH00B8M 8" x 14" Snap Hoop Monster for Janome

    • Sewing Field: 7.87" x 13.98" or 200 mm x 355 mm

    • Inside Width: 232.68 mm / 9.16 inches

    • Inside Length: 410 mm / 16.14 inches

    SH00B10M 11" x 11" Snap Hoop Monster for Janome

    • Sewing Field: same or 280 mm x 280 mm

    • Inside Width: 309 mm / 12.17 inches

    • Inside Length: 325 mm / 12.80 inches

    SH00B11M 11" x 18.1" Snap Hoop Monster for Janome

    • Sewing Field: same or 280 mm x 460 mm

    • Inside Width: 309 mm / 12.17 inches

    • Inside Length: 506 mm / 19.92 inches

    Pfaff and Husqvarna-Viking Hoop Dimensions

    SH00D2M 120 mm x 120 mm Snap Hoop Monster for Pfaff and Husqvarna-Viking

    • Inside Width: 145.26 mm / 5.72 inches

    • Inside Length: 170 mm / 6.69 inches

    SH00D4M 200 mm x 200 mm Snap Hoop Monster for Pfaff and Husqvarna-Viking

    • Inside Width: 244.94 mm / 9.64 inches

    • Inside Length: 255 mm / 10.04 inches

    SH00D5M 200 mm x 360 mm Snap Hoop Monster for Pfaff and Husqvarna-Viking

    • Inside Width: 232.68 mm / 9.16 inches

    • Inside Length: 410 mm / 16.14 inches

    SH00D3M 260 mm x200 mm Snap Hoop Monster for Pfaff and Husqvarna-Viking

    • Inside Width: 224.86 mm / 8.85 inches

    • Inside Length: 310 mm / 12.20 inches



    Snap Hoop Dimensions - Single-Needle Tubular and Multi-Needle Hoops

    Snap Hoop Dimensions for Baby Lock and Brother Single-Needle Tubular and Multi-Needle

    MNM00A4 4" x 4" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: 3.94" x 3.94" or 100 mm x 100 mm

    • Width: 125.22 mm / 4.93 inches

    • Length: 155 mm / 6.10 inches



    MNM00A1 5" x 7" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: 5.12" x 7.09" or 130x180mm

    • Width: 154.9 mm / 6.1 inches

    • Length: 225 mm / 8.86 inches



    MNM00A2 8" x 8" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: 7.87" x 7.87" or 200 mm x 200 mm

    • Width: 224.94 mm / 8.86 inches

    • Length: 255 mm / 10.04 inches



    MNM00A5 8" x 12" Snap Hoop Monster for Baby Lock and Brother

    • Sewing Field: 7.87" x 11.81" or 200 mm x 300 mm

    • Width: 219.76 mm / 8.65 inches

    • Length: 331 mm / 13.03 inches

    Snap Hoop Dimensions for Janome Single-Needle Tubular and Multi-Needle

    MNM00B1 100 mm x 100 mm Snap Hoop Monster for Janome

    • Sewing Field: 3.94" x 3.94" or 100 mm x 100 mm

    • Width: 125.22 mm / 4.93 inches

    • Length: 155 mm / 6.10 inches



    MNM00B2 240 mm x 200 mm Snap Hoop Monster for Janome

    • Sewing Field: 9.45" x 7.87" or 240 mm x 200 mm

    • Width: 199.99 mm / 7.87 inches

    • Length: 298 mm / 11.73 inches
